Hvac ductwork

Make high-quality ducts, fittings, flanges and brackets for custom mechanical jobs. The optional software (shown below, right) automatically designs 3-dimensional custom parts based on your dimensions, materials and other preferences.

Create fittings fast:

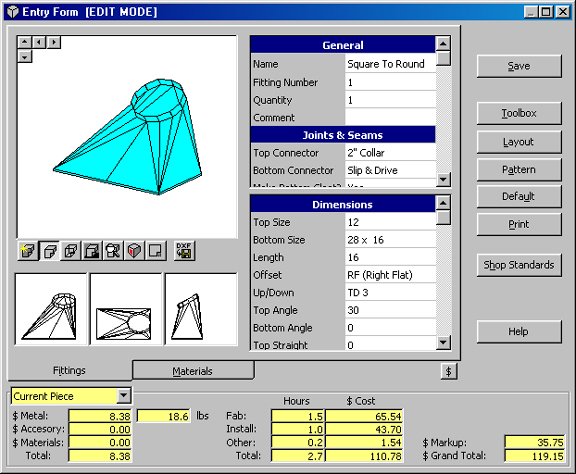

Click the shape you want and enter the details
Preview the 3D shape and flat pattern(s) with connectors, seams, bend lines, etc.
Print the material list and reports specifying how the part is made

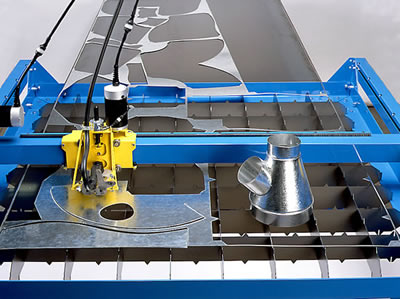

Cut the flat pattern(s) with the PlasmaCAM™ machine
Form and assemble the piece(s) to make the finished part.

Software features:

Creates standard parts for HVAC, roofing, piping, and heavy plate industries
Comprehensive library has round, rectangular, oval and combination fittings
Uses industry standard gauges, connectors, seams, lining and vanes

The PlasmaCAM DesignEdge™ software imports shapes from optional HVAC layout software packages and allows precision cutting of flat patterns and other mechanical shapes!

Applies SMACNA standards, pressure gauge classes based on size, and bend setbacks based on metal thickness
Fully customizable parts - change dimensions, offsets, angles, size, shape, or construction
Shows previews, weight, square footage, scrap and costs before part is made
Keep production running efficiently with printed reports, materials lists, and production labels
Process multiple fittings at once for any number of jobs and zones

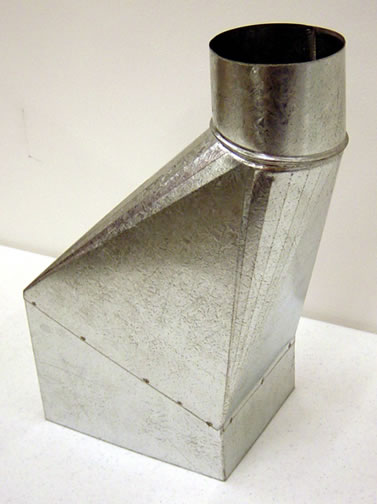

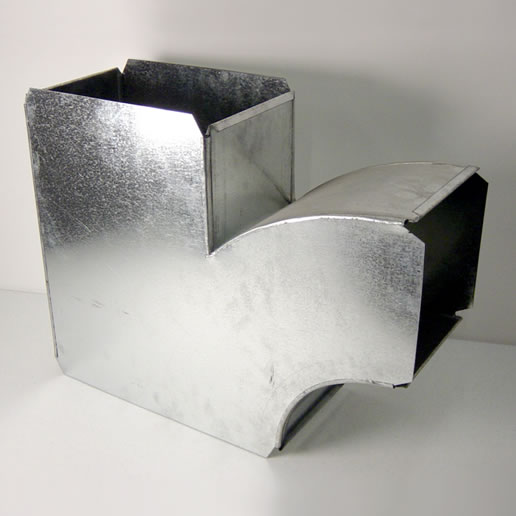

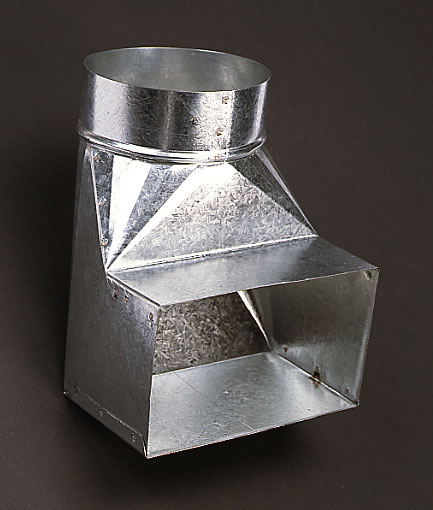

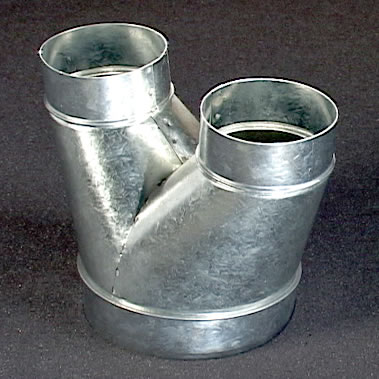

Make intricate HVAC parts like these!
